Wemos webserver example

In this example we will create a basic webserver example using our Wemos, it will connect to your Wifi network and then you will navigate to a URL and a basic page will appear. This page will display 2 links , one will switch on an led connected to D5 and the other option will switch the led off.

Wemos D1 ESP8266 based board
Wemos D1 ESP8266 based board

Parts

1 x Wemos D1 or D2
1 x USB cable
1 x LED and resistor or use a module

Code

[codesyntax lang=”cpp”]

#include <ESP8266WiFi.h>

const char* ssid = "ssid name";
const char* password = "ssid password";

int ledPin = D5;
WiFiServer server(80);

void setup() {
  Serial.begin(115200);
  delay(10);


  pinMode(ledPin, OUTPUT);
  digitalWrite(ledPin, LOW);

  // Connect to WiFi network
  Serial.println();
  Serial.println();
  Serial.print("Connecting to ");
  Serial.println(ssid);

  WiFi.begin(ssid, password);

  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }
  Serial.println("");
  Serial.println("WiFi connected");

  // Start the server
  server.begin();
  Serial.println("Server started");

  // Print the IP address
  Serial.print("Use this URL : ");
  Serial.print("http://");
  Serial.print(WiFi.localIP());
  Serial.println("/");

}

void loop() {
  // Check if a client has connected
  WiFiClient client = server.available();
  if (!client) {
    return;
  }

  // Wait until the client sends some data
  Serial.println("new client");
  while(!client.available()){
    delay(1);
  }

  // Read the first line of the request
  String request = client.readStringUntil('\r');
  Serial.println(request);
  client.flush();

  // Match the request

  int value = LOW;
  if (request.indexOf("/LED=ON") != -1) {
    digitalWrite(ledPin, HIGH);
    value = HIGH;
  }
  if (request.indexOf("/LED=OFF") != -1){
    digitalWrite(ledPin, LOW);
    value = LOW;
  }



  // Return the response
  client.println("HTTP/1.1 200 OK");
  client.println("Content-Type: text/html");
  client.println(""); //  do not forget this one
  client.println("<!DOCTYPE HTML>");
  client.println("<html>");

  client.print("Led pin is now: ");

  if(value == HIGH) {
    client.print("On");
  } else {
    client.print("Off");
  }
  client.println("<br><br>");
  client.println("Click <a href=\"/LED=ON\">here</a> turn the LED on pin 5 ON<br>");
  client.println("Click <a href=\"/LED=OFF\">here</a> turn the LED on pin 5 OFF<br>");
  client.println("</html>");

  delay(1);
  Serial.println("Client disconnected");
  Serial.println("");

}

[/codesyntax]

Results

Open the serial monitor , all going well and you will see the IP address and messages like the following

wemos ip address
wemos ip address

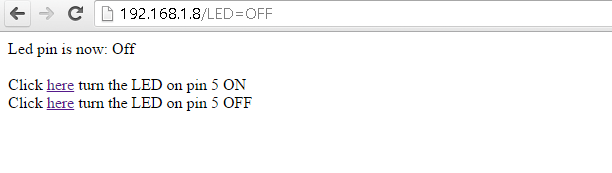

Using your favourite web browser navigate to the IP above

wemos browser
wemos browser





Update

I tried this out and it uses a static IP address

[codesyntax lang=”cpp”]

//This example will set up a static IP - in this case 192.168.1.99

#include <ESP8266WiFi.h>

const char* ssid = "ssid name";
const char* password = "ssid password";

int ledPin = D5;
WiFiServer server(80);
IPAddress ip(192, 168, 1, 99); // where xx is the desired IP Address
IPAddress gateway(192, 168, 1, 1); // set gateway to match your network

void setup() {
  Serial.begin(115200);
  delay(10);


  pinMode(ledPin, OUTPUT);
  digitalWrite(ledPin, LOW);

  Serial.print(F("Setting static ip to : "));
  Serial.println(ip);

  // Connect to WiFi network
  Serial.println();
  Serial.println();
  Serial.print("Connecting to ");
  Serial.println(ssid);
  IPAddress subnet(255, 255, 255, 0); // set subnet mask to match your network
  WiFi.config(ip, gateway, subnet);
  WiFi.begin(ssid, password);

  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }
  Serial.println("");
  Serial.println("WiFi connected");

  // Start the server
  server.begin();
  Serial.println("Server started");

  // Print the IP address
  Serial.print("Use this URL : ");
  Serial.print("http://");
  Serial.print(WiFi.localIP());
  Serial.println("/");

}

void loop() {
  // Check if a client has connected
  WiFiClient client = server.available();
  if (!client) {
    return;
  }

  // Wait until the client sends some data
  Serial.println("new client");
  while(!client.available()){
    delay(1);
  }

  // Read the first line of the request
  String request = client.readStringUntil('\r');
  Serial.println(request);
  client.flush();

  // Match the request

  int value = LOW;
  if (request.indexOf("/LED=ON") != -1) {
    digitalWrite(ledPin, HIGH);
    value = HIGH;
  }
  if (request.indexOf("/LED=OFF") != -1){
    digitalWrite(ledPin, LOW);
    value = LOW;
  }



  // Return the response
  client.println("HTTP/1.1 200 OK");
  client.println("Content-Type: text/html");
  client.println(""); //  do not forget this one
  client.println("<!DOCTYPE HTML>");
  client.println("<html>");

  client.print("Led pin is now: ");

  if(value == HIGH) {
    client.print("On");
  } else {
    client.print("Off");
  }
  client.println("<br><br>");
  client.println("Click <a href=\"/LED=ON\">here</a> turn the LED on pin 5 ON<br>");
  client.println("Click <a href=\"/LED=OFF\">here</a> turn the LED on pin 5 OFF<br>");
  client.println("</html>");

  delay(1);
  Serial.println("Client disconnected");
  Serial.println("");

}

[/codesyntax]
